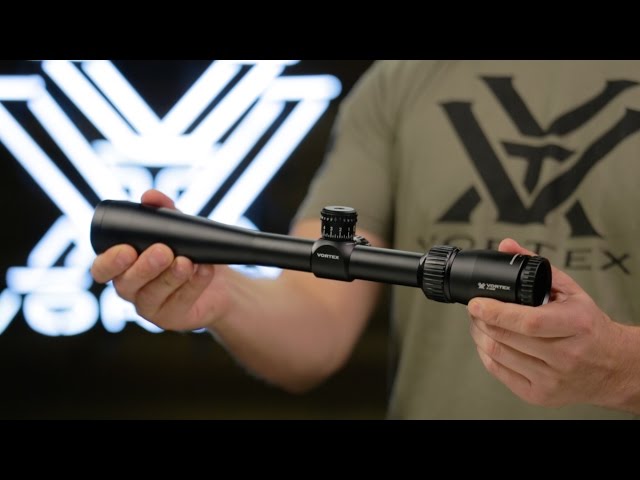

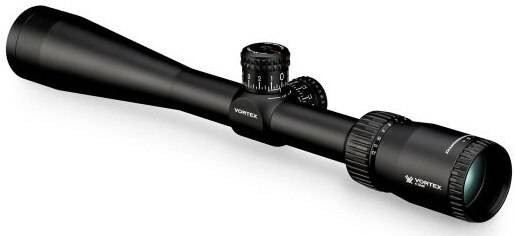

The Vortex Diamondback Tactical 4-12x40 Riflescope features exposed tactical turrets for dialing in windage and elevation for fast and precise bullet drop and wind drift compensation for long range shots. These turrets track better than any Bloodhound and reliably return to zero every time. The zero-reset feature lets you quickly re-index both turrets to zero and fiber optic rotation indicators give a visual que of your turrets position.
Optical Features:
- XD Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
- XR Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Construction Features:
- Tube Size 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
- Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof Rugged construction withstands recoil and impact.
- Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
- Precision-Glide Erector System This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.
- Exposed Tactical-Style Turrets Provide fast, accurate and easily read elevation and windage adjustments.
Convenience Features:
- Fast Focus Eyepiece Allows quick and easy reticle focusing.
- Radius Bar Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations.
- Magnification Rib The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
VMR-1 Reticle:
Included in the Box:
- Lens Covers
- Lens Cloth
- Tools
Features:
- Magnification: 4-12x
- Objective Lens Diameter: 40 mm
- Eye Relief: 3.9 inches
- Field of View: 23.6-7.9 ft/100 yds
- Tube Size: 1 inch
- Turret Style: Tactical
- Adjustment Graduation: 1/4 MOA
- Travel Per Rotation: 12 MOA
- Max Elevation Adjustment: 70 MOA
- Max Windage Adjustment: 70 MOA
- Parallax Setting: 100 yards
- Length: 14.08 inches
- Weight: 16.2 oz
- Product Manual (PDF) Download
- Reticle Manual (PDF) Download
