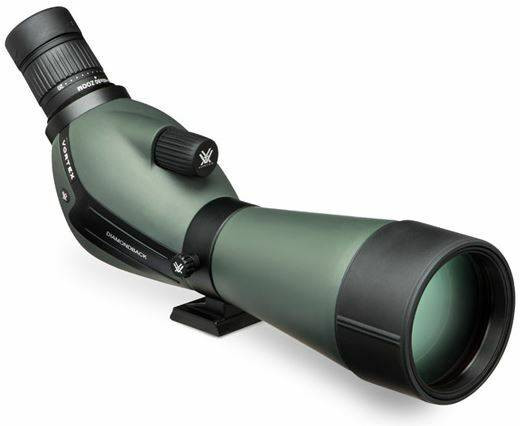

Vortex Diamondback 20-60x80 Spotting Scope

Item Code: DBSS268
loading icon
  • Magn,ification: 20-60 x
  • Adjustable Eyecup
  • Fogproof
  • Precision-Glide Erector System
  • Waterproof
  • Detail
    Reviews / Q&A

    Born into the bloodline of our popular Diamondback family, this spotter delivers outstanding performance clearly a superb choice when you need a heavyweight performer in a light, compact package. The Diamondback optics guarantee a bright image throughout the magnification range and, as true to all Diamondback optics, the rugged construction stands up ,to rough use in the field.

    Optical Features:

        • XR Fully Multi-Coated: Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
        • Dielectric Prism Coatings: Multi,-layer prism coatings provide bright, clear, color-accurate images.

    Construction Features:

        • Porro Prism: Offers maximum image quality and performance in a traditional design.
        • Angled Body Design: Valued for allowing an ,overall lower mounting height which maximizes stability in wind, offers greater comfort when glassing for extended periods, and permits the use of a smaller, lighter tripod.
        • Straight Body Design: Valued for speedy target acquisition and ease o,f use. Most compatible design for use with car window mounts.
        • Waterproof: O-ring seals prevent moisture, dust and debris from penetrating the spotting scope for reliable performance in all environments.
        • Fogproof: Nitrogen gas purging delivers fogproof, waterproof performance.

    Convenience Features:

        • Adjustable Eyecup: Twists up and down to precise, intermediate settings to maximize custom fit for comfortable viewing with or without eyeglasses.
        • Built-in Sunshade: Reduces glare and shields the objective lens from raindrops and snow.
        • Rotating Tripod Ring: Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.


        • Magn,ification: 20-60 x
        • Objective Lens Diameter: 80 mm
        • Linear Field of View: 105-51 feet/1000 yards
        • Angular Field of View: 2-1 degrees
        • Close Focus: 22 feet
        • Eye Relief: 20-16.5 mm
        • Exit Pupil: 4-1.3 mm
        • Length,: 15.7 inches
        • Weight: 47.1 ounces
